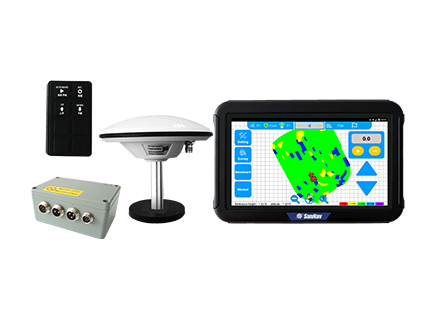

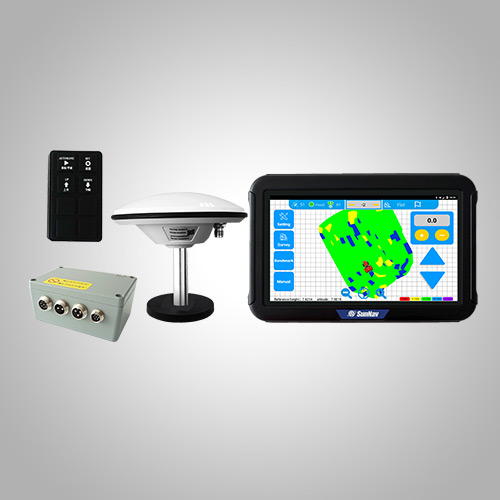

AG2000-3 GNSS Land Leveling System

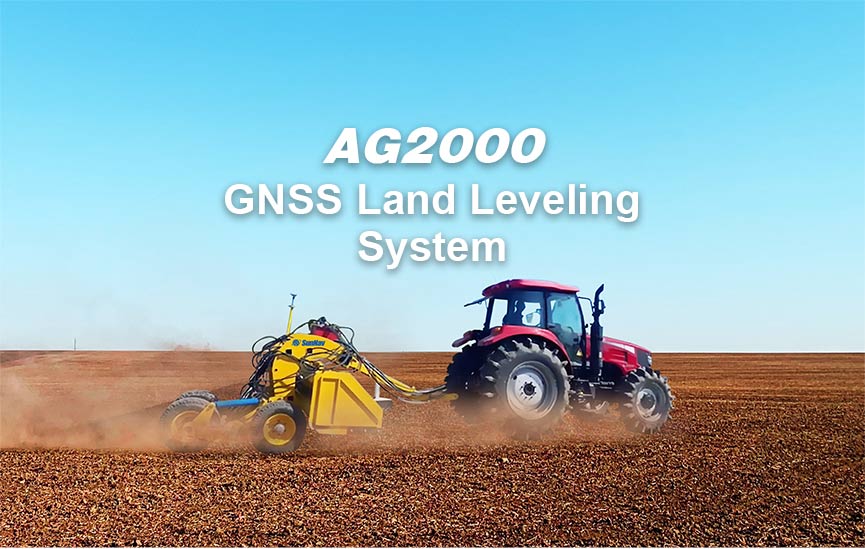

The AG2000-3 system is a high-precision and high-performance GNSS Land Leveling system,independently developed by SunNav.Widely used in precision agriculture for wasteland restoration,land remediation and leveling, slope land conversion, paddy field leveling,dry land leveling and other large areas land leveling. It can also be used for water conservancy,airport construction and large-scale stadium construction.

The AG2000-3 system is a high-precision and high performance GNSS Land Leveling system, independently developed by SunNav.
Features:
1.10.1 inch touch screen, Convenient operation, Real time display of height difference and equipment status information
2.3D image display, High and low terrain display, clear at a glance
3.support single & dual slope leveling;
4.Support land surveying and one-key BENCHMARK setting function, fast and efficient;
5.Support base station and Cors station connection, provide high accuracy land leveling work. The land leveling accuracy could be ±2cm;
6.Long working distance, 3-5KM(internal radio), 10-15KG(external radio), 30-50KM(Cors station)
7.Adjustable control precision, adjustable solenoid valve response sensitivitySupport 100M Ethernet, 4G full Netcom, WIFI, Bluetooth communication interface

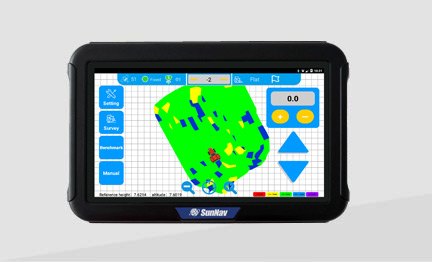

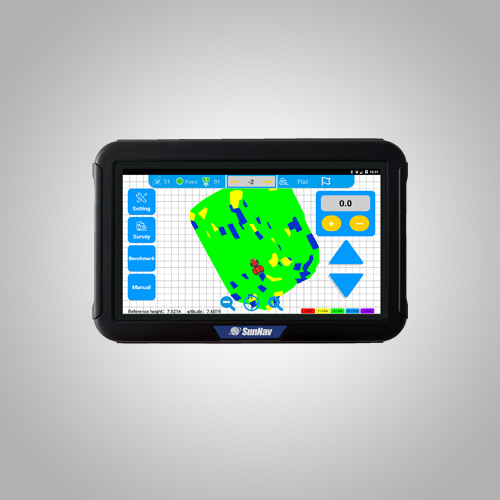

T201 Console
The SunNav T201 display is a portable,robust Android tablet. T201 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.

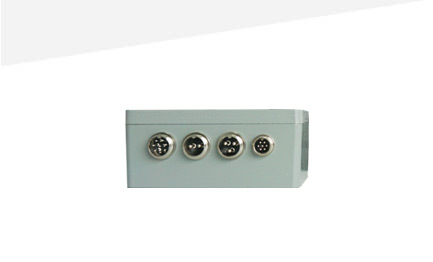

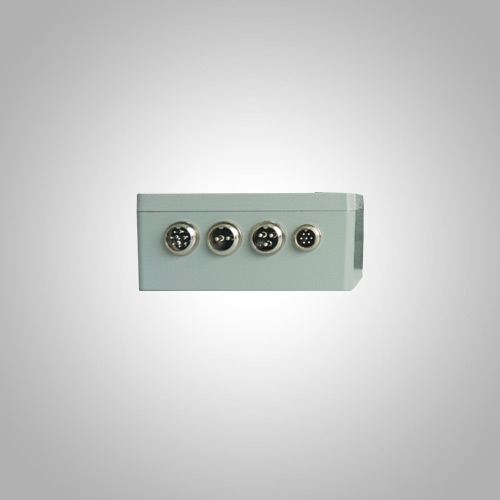

AC201 Control Box
AC201 is a high-precision positioning control box for controlling the operation of machinery and equipment.

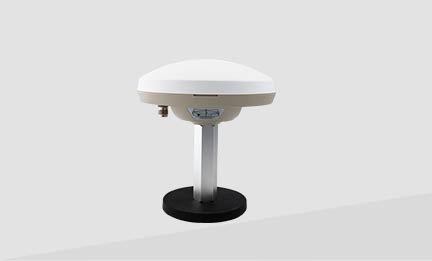

GNSS Antenna
GNSS antenna can give high precision and heading.

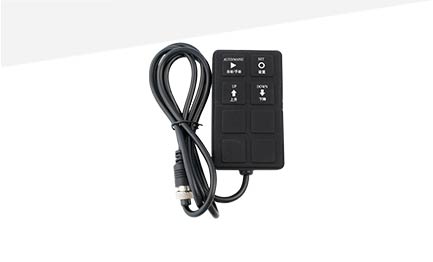

Remote Controller
Remote Controller is a manual controller, waterproof and dustproof is IP65
  • Features
  • Specifications
  • Application
1.10.1-inch high-resolution display screen, Real time display of height difference and equipment status information
2.Support high-precision centimeter-level positioning and orientation
3.Support leveling slopes and horizontal planes, simple operation, site operation will not be affected by sandstorms, blowing sand, heavy fog, strong wind and other weather, high operation accuracy, 24 hours operation can be realized
4.Vehicle regulation level can ensure normal operation in harsh environments, IP65 protection level
5.Land surveying function
6.Support CORS system (Ntrip CORS network)
7.Adjustable control accuracy, Adjustable solenoid valve response sensitivity
8.Support  4G full Netcom, WIFI, Bluetooth communication interface
9.Adjustable radio frequency/protocol/airspeed, frequency range 410MHz-470MHz, Avoid radio signal interference, compatible with all base station
10.Support remote online upgrade of the system
11.Support 250K/500K CAN bus (J1939, CAN Open)
12.12V voltage power input, support ignition detection
SYSTEM Android 6.0
4 cores, 1.2GHz
2G RAM
16G ROM
Built-in speaker (8ohm, 3W)
I/O
interface
RS-232 *2
RS-485 *1
USB2.0 *1
DC in *1
DISPLAY 10.1 inch high resolution LCD display Screen,
resolution: 1024*600
Capacitive touch screen, support multi-touch
Power 12V DC input
Support power failure detection
Function & button Power switch key Environment
parameter
Protection level: IP65
Working temperature: -20℃~+70℃,
Humidity: 0%~90%RH
Storage temperature: -40℃~+85℃,
Humidity: 30%~95%RH
NETWORK 2.4G Wi-Fi, IEEE802.11 g /b/n
BT4.0, BLE
Specification size(W*H*D):297*203*43mm
GNSS Base Station -Channels: 432 Channels
-GPS:L1/L2
-BDS: B1/B2
-GLONASS: L1/L2
-Galileo: E1/E5b
-QZSS: L1/L2
Cold start: <50s Hot start: <15s
Radio Module: - Adjustable Full Band: 410-470 MHz
RTK:
-Horizontal: ± (10 + 1×10 -6×D mm
-Vertical: ± (20 + 1×10 -6×D) mm
