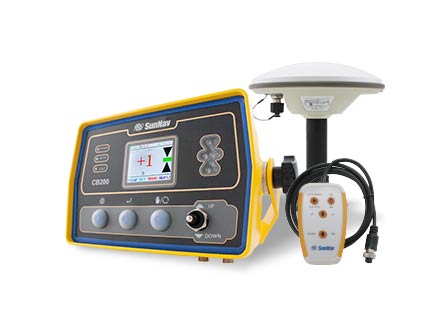

AG200 Land Leveling system

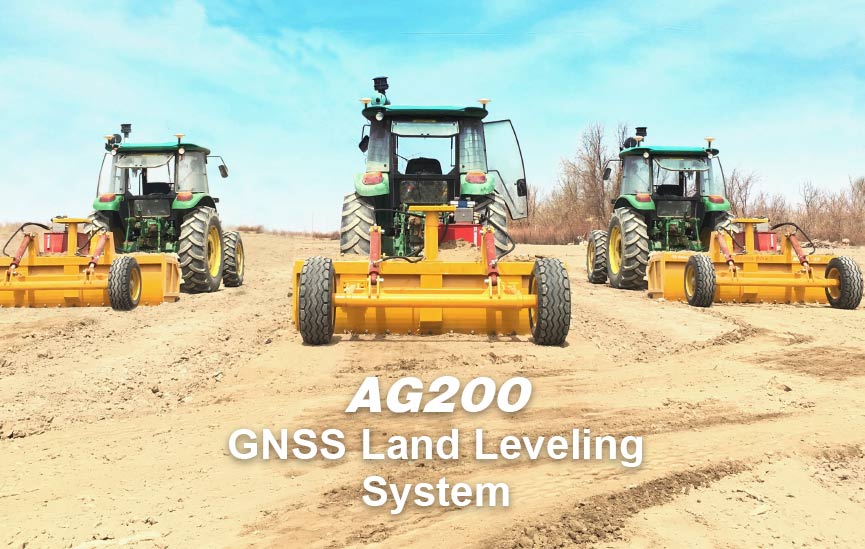

The AG200 system is a high-precision and high-performance GNSS Land Leveling system, independently developed by SunNav. Widely used in precision agriculture for wasteland restoration, land remediation and leveling, slope land conversion, paddy field leveling, dry land leveling and other large areas land leveling. It can also be used for water conservancy, airport construction and large-scale stadium construction.

The AG200 system is a high-precision and high-performance GNSS Land Leveling system, inde-pendently developed by SunNav. Widely used in precision agriculture for wasteland restoration, land remediation and leveling, slope land con-version, paddy field leveling, dry land leveling and other large areas land leveling.

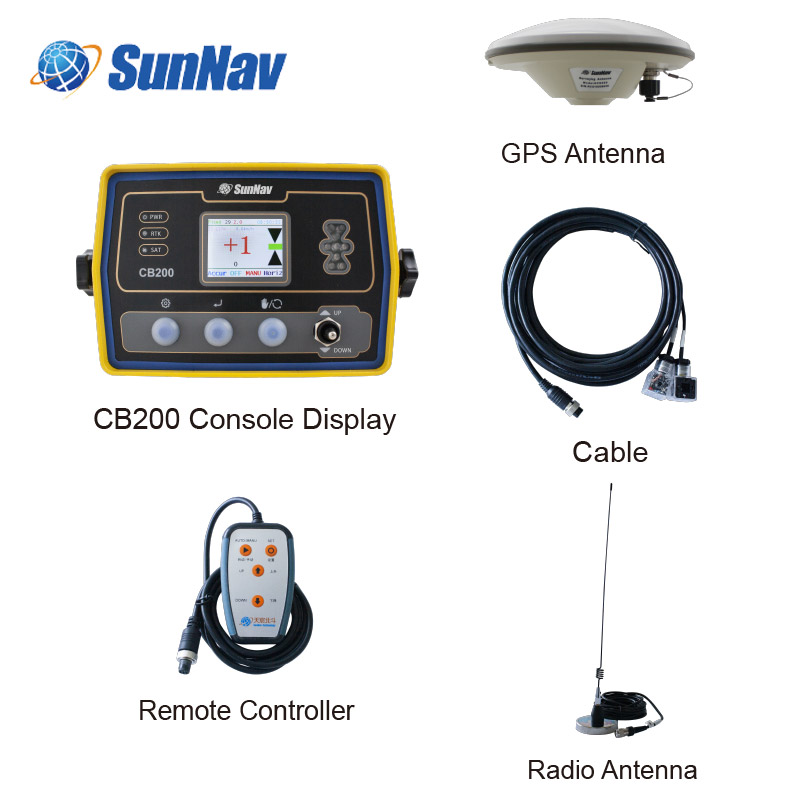

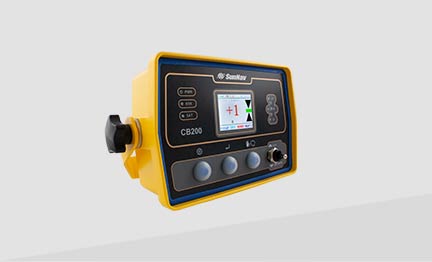

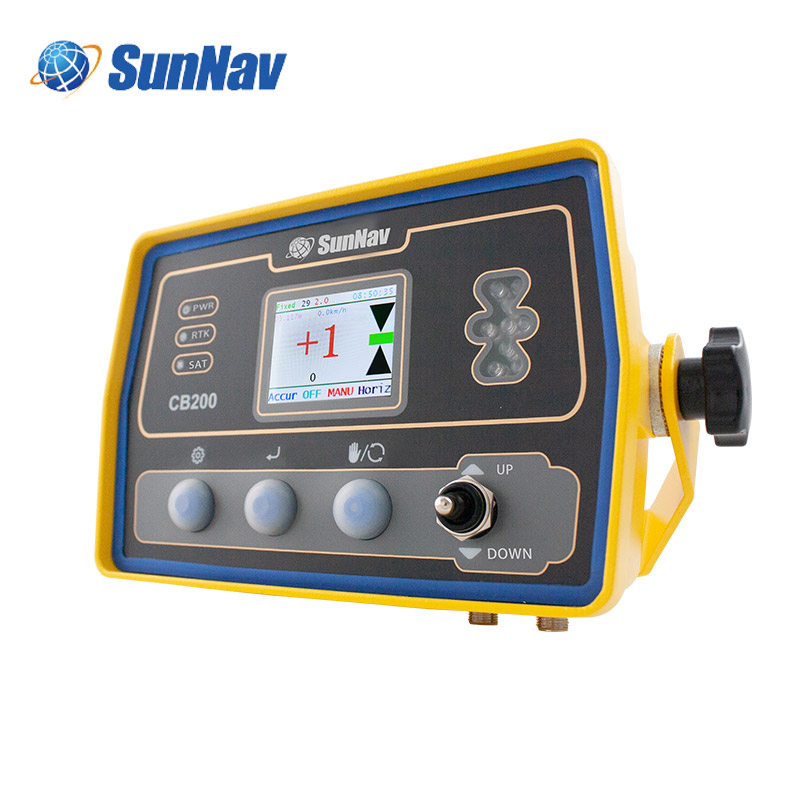

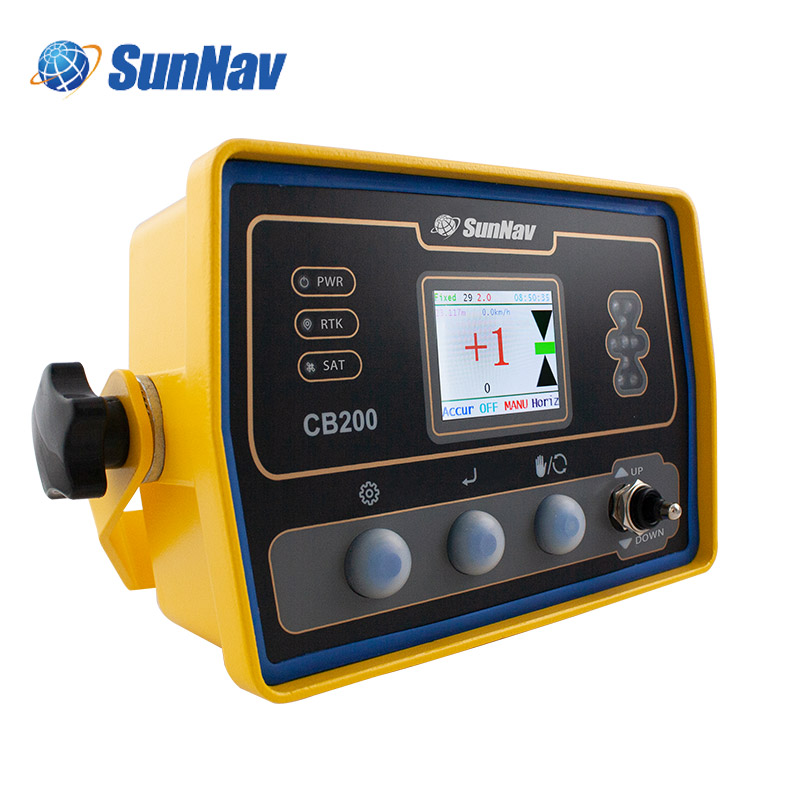

CB-200
Easy operation, supports both horizontal and slope modes.

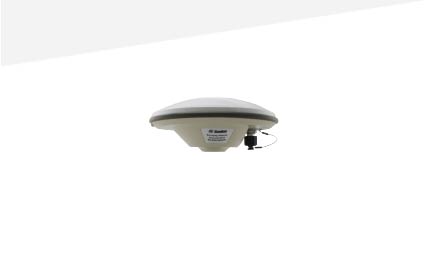

GNSS Antenna
GNSS antenna can give high precision

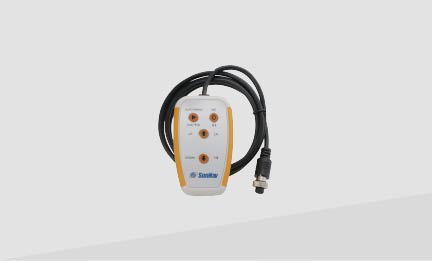

Remote Controller
Remote Controller is a manual controller, water-proof and dustproof is IP65
  • Features
  • Specifications
  • Application
Manual/AUTO Leveling Function
one set for Benchmark
CORS System
Support Slope Function
Long Working Range
Internal Radio Working Range: Radius 3-5KM, External Radio Working Range: Radius 15-25KM)
Easy Installation and Maintenance
GNSS(BEIDOU GPS/GLONASS)
Could work in Harsh Environment
Size26x17x8cm
MaterialRugged and light weight metal package
Precision±2cm
Voltage input9-16V
Weight1.7kg
ProtocolTRANSEOT/TRIMTALK
StaticH: 2.5mm+1ppm,
V: 5.0mm+1ppm
Satellite SignalsBDS:B1/B2
GPS:L1/L2
GLONASS:L1/L2
GALILEO:E1/E5b
QZSS:L1/L5
SBAS:L1
RTK-Horizontal: ± (10 + 1×10 -6×D) mm
-Vertical: ± (20 + 1×10 -6×D) mm
Data FormatNMEA-0183,RTCM2.X/RTCM3.0/RTCM3.2, MSM4,MSM5
Initialization reliability > 99.9%

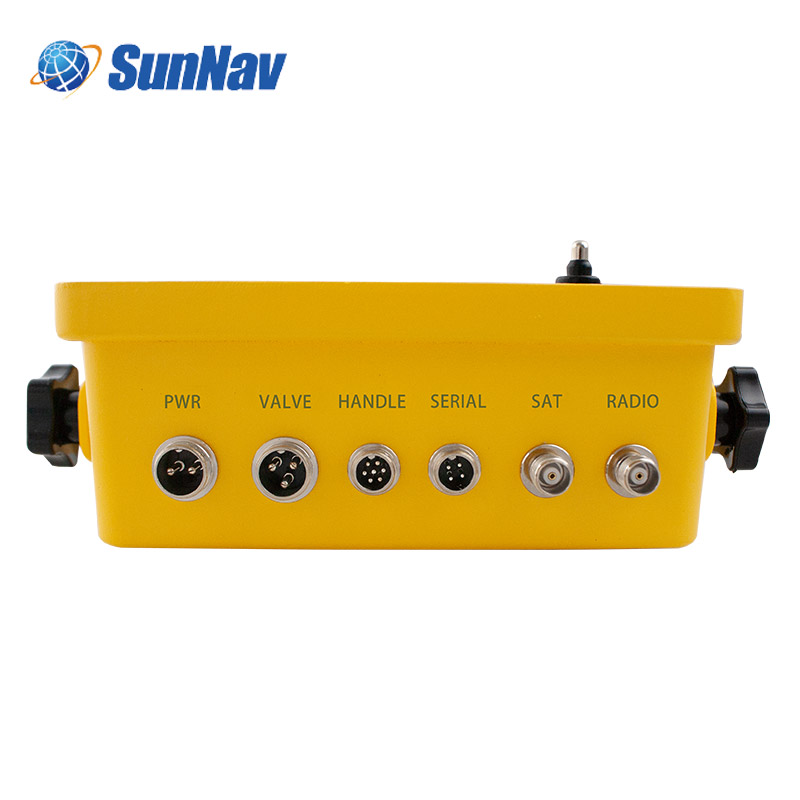

Data interfacePower Supply
The electromagnetic valve
Handle
Serial Port
Satellite
Radio
