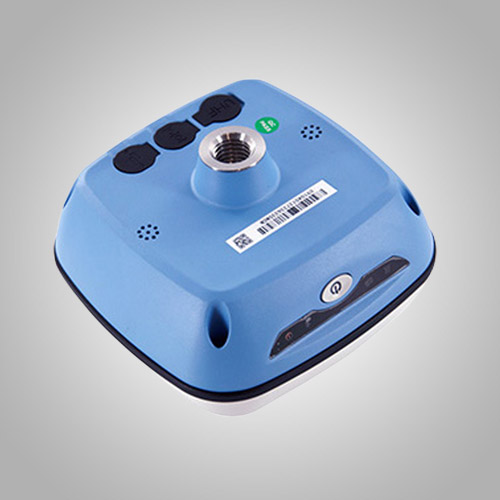

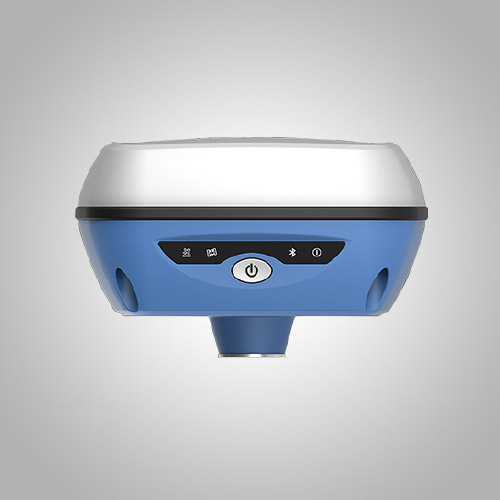

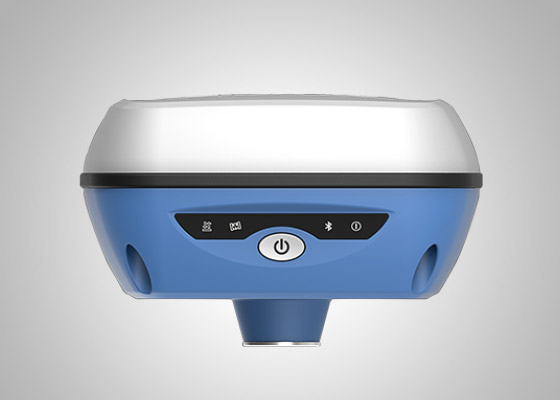

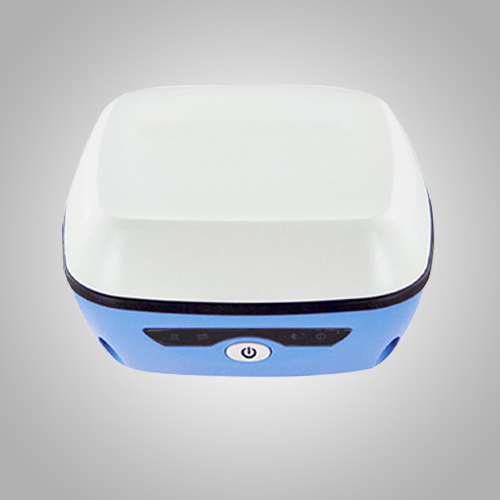

C6 GNSS RTK Receiver

C6 is a high-precision GPS RTK product, the overall appearance is very miniaturization and light weight. The sturdy lines and lightweight appearance are convenient for carrying out measurement operations. C6 is made of magnesium-aluminum alloy material to create a light and strong line body, the body material density is small, and adopts a translucent capital shifting panel, and the visual technology is stronger.

  • Features
  • Specifications
  • Aplication
1.Full satellites: BDS/GPS/GLONASS/Galileo/SBAS/QZSS/L-Band
2.Built-in TX/RX radio,410-470 Mhz, Support multiple protocols: SOUTH, TrimTalk450S, Satel, ZHD, CHC(huace), etc
3.NFC touch: auto paired with the receiver
4.Electronic bubble function
5.8GB solid state storage, supporting 32GB external extension
6.IMU Tilt survey function, (optional)
7.WebUI: Built-in WebUI management background
8.plug-and-play USB data transmission; HTTP data download
9.Cloud Service: remotely manage and configure devices
10.Intelligent voice: double speaker design, three-dimensional sound broadcast
11.GNSS antenna, Bluetooth antenna, WIFI antenna "three-dimensional one" highly integrated design
12.Waterproof and dustproof design, IP68 protection level.
ItemsSpecification
GNSSSignal Tracking965 Channels
BDS:B1,B2,B3
GPS: L1,L2C,L2P,L5
GLONASS: L1 C/A, L1P, L2C/A, L2P
Galileo: E1C,E5A,E5B
SBAS,QZSS: support
L-Band :support
GNSS FeaturesPositioning output rate 1Hz~20Hz
Initialization time : <10s
Initialization reliability : >99.99%
All-Constellation receiving Technology that supports all existing and planned GNSS constellation signals
Positioning PrecisionCode Differential GNSS PositioningHorizontal:0.25 m + 1 ppm RMS
Vertical:0.50 m + 1 ppm RMS
SBAS positioning accuracy: typically <5m 3DRMS
Static GNSS SurveyingHorizontal:±(2.5mm+0.5×10-6D)
Vertical:±(5mm+0.5×10-6D)
RTK SurveyingHorizontal:±(8mm+1×10-6D)
Vertical:±(15mm+1×10-6D)
Operating system / user interactionOperating systemLinux
buttonsSingle button operation, convenient and quick
indicatorFour indicator lights
Web interactionBuilt-in WebUI management background, support WiFi and USB mode access WebUI page, real-time monitoring of receiver status, set any configuration of the receiver.
voiceIntelligent voice technology, support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish; support for voice customization
Data cloud serviceSupport register online, remote upgrade and etc.
ElectricalPower9-28V wide voltage DC design with overvoltage protection
BatteryHigh capacity built-in battery 6800mAh 7.4V
Power solutionRoutine operations meet the endurance of more than 8 hours
(Provide 7*24h continuous working power solution)
CommunicationsI/O Port5 PIN LEMO External power interface +RS232
7 PIN LEMO with USB(OTG)
Radio, Network Antenna Interface (shared)
Radio modemBuilt-in high performance radio,
operating frequency 410-470MHz,
External radio: 5W/25W/35w
protocol: TrimTalk450S,TrimMark3, SOUTH, CHC,SATEL,HI-TARGET
BluetoothBLE Bluetooth 4.0;Bluetooth 2.1 + EDR standard
NFC wireless communicationUsing NFC wireless communication technology, the controller can be automatically paired with the receiver. ( controller needs have NFC wireless communication module)
WIFIstandard802.11b/g/n
WIFI hot spotWIFI hot spot function: intelligent terminal can connect to the receiver to do personalization custom;
Data transmission supported between the receiver and the controller
WIFI data chainingReceiver can access WIFI, to broadcast or receive differential data via WIFI
Data storage / transmissionData storage8G solid state memory, supporting 32GB external extension, Automatic cyclic storage,
Supporting external USB memory for data storage;
transmissionOne key Smart copy directly exports host static data via external USB memory; plug and play USB for data transfer; FTP download, HTTP download.
data formatStatic: SOUTH, Rinex2.01, Rinex3.02 and etc.
Differential data format: RTCM 2.1,RTCM 2.3,RTCM 3.0,RTCM 3.1,RTCM 3.2 Input and output;
GPS output data format: NMEA 0183, PJK plane coordinates, binary code,
IMU/SensorElectron bubbleBuilt-in sensors, data collector software can display electronic bubbles, real-time check the alignment of the surveying pole leveling situation
Shake and shake tilt measurement (optional)The built-in IMU sensor supports the tilt measurement function of shaking and shaking, and automatically corrects the coordinates according to the tilt direction and angle of the centering rod.
temperature sensorBuilt-in temperature sensor, real-time monitoring and adjusting host temperature
PhysicalSize135*135*84.75mm
Weight0.97KG with battery
Materialaluminium magnesium alloy
TemperatureOperating:–30 °C  to +65 °C
Storage:–40 °C to +80 °C
HumidityResistance to 95% condensation
Waterproof/ DustproofWaterproof:1m immersion,IP68
Dustproof: Completely prevent dust from entering,IP68
shockproofResistance to 2-meter drop with rod
