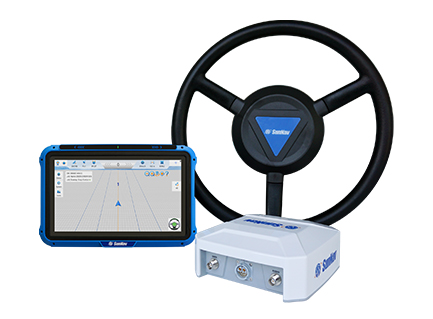

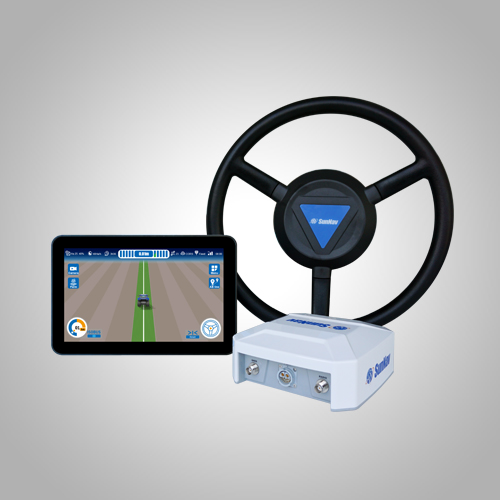

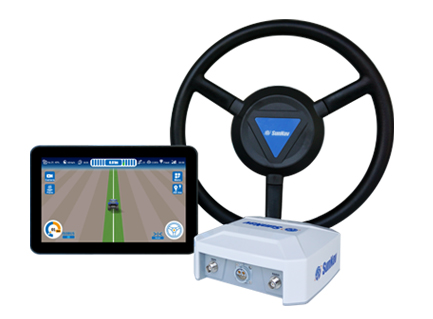

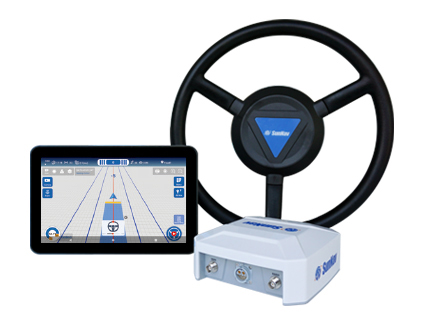

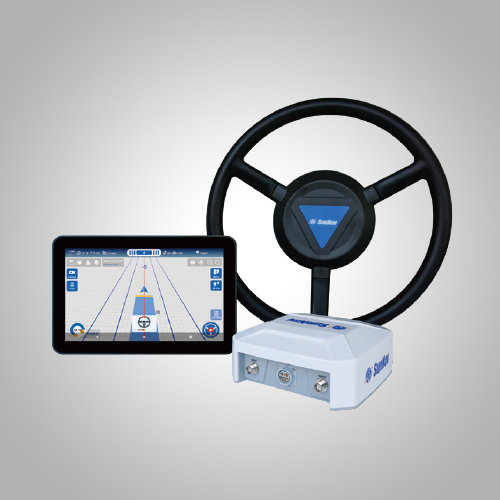

AG500 GNSS Auto-Steering System

SunNav Auto Steering system AG500 can give you high performance autosteering on non steer ready vehicles, including tractors sprayers swathers and combines. It can provide an accuracy up to 2.5cm and can be widely used in planing spraying harvest.





SunNav GPS auto pilot system AG500 can give you high performance auto pilot on non steer ready vehicles, including tractors sprayers,swathers and combines.

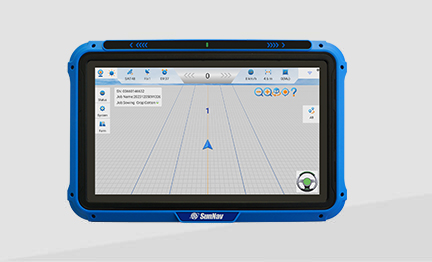

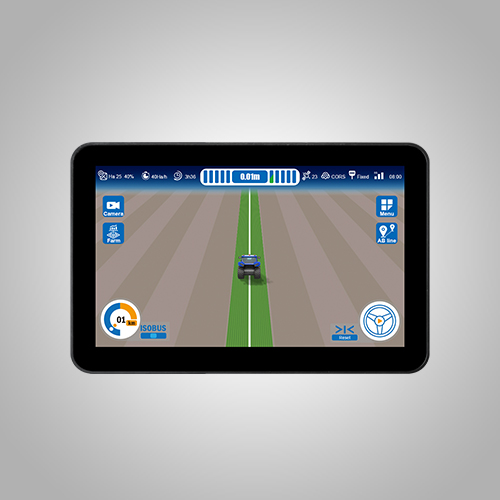

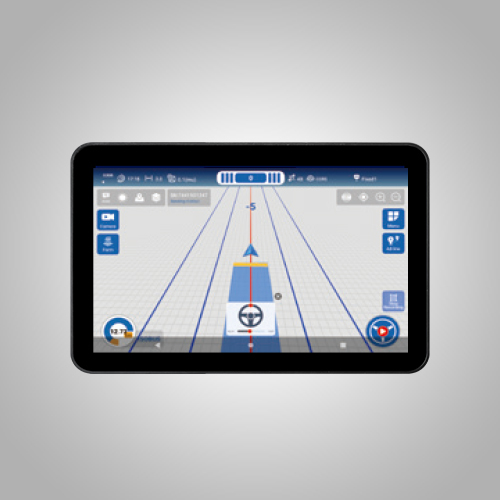

T101 Console

Operating System: Android 9.0 /6.0
LCD: 10.1’’ Capacitive Touch Screen
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
Bluetooth: V4.0
Serial Port: RS232 x2, RS485 x1
CAN Port: CANx2 (J1939, CANOpen, ISO15765)
Dustproof & Waterproof: IP-65
Dimension: 281mmx181mmx42mm
Weight: 1.5kg

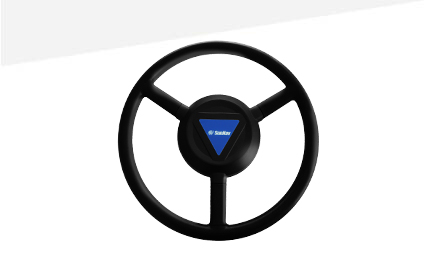

EMS4 motor wheel

The EMS4 is an electric motor steering wheel. It is designed for easy-to-install operation. With high-torque, direct-drive electric motor, EMS4 can give an accuracy 2.5cm RTK.

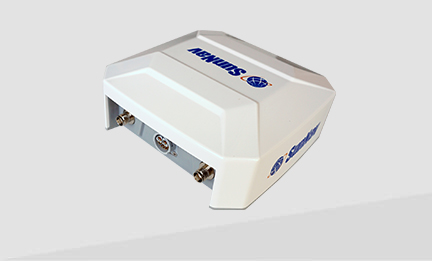

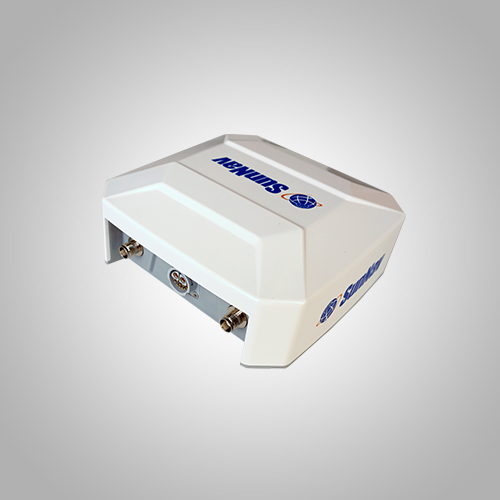

GNSS Antenna

Built-in GNSS board,IMU sensor,
Radio,Antenna
Physical Dimension:179×179×69mm
Weight: 1.1Kg
Protection Level: IP67
Supply Voltage: DC 9~36V
Signal: GPSL1/L2,BDS B1/B2,GLONASS L1/L2,
Galieo E1/E5a/E5b,QZSS L1/L2/L5
Data Format: NMEA 0183,Unicre
  • Features
  • Specifications
  • Application

■ Easy and fast installation

■ Very simple calibration


Specification


■ Installation in 30 mins, Calibration in 15 mins, Quick learn in 5 mins
■ Don't have to change hydyraulic system
■ Can be switched in different vehicles
■ 3m on the line
■ Operation accuracy
■ Cloud data storage
■ AB Line files can be shared in different vehicles
■ Double antenna receives signal to get high accuracy

PRODUCT TYPE

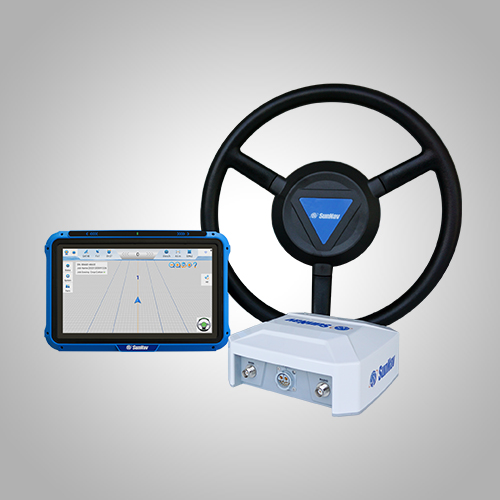

GNSS Auto Steering System AG500

STANDARD CONFIGURE • GNSS Base Station
Channels: 965 Channels / 1408 Channels
GPS: L1/L2
BEIDOU: B1/B2
GLONASS: L1/L2
Galileo: E1/E5b
QZSS: L1/L2
SBAS: L1C/A  Galileo scalability
BDS global satellites
scalability
Radio Module: Adjustable Full Band: 410-470 MHz
Size (L x W x H): 213mm x 119mm x 73mm
Weight: 1.2kg (include Internal UHF)
Working Temperature: -40°C to +70°C
Storage Temperature: -45°C to +80°C
Interface: 2 Ports (Power & Data & Configuration)
Waterproof and Dustproof: IP67

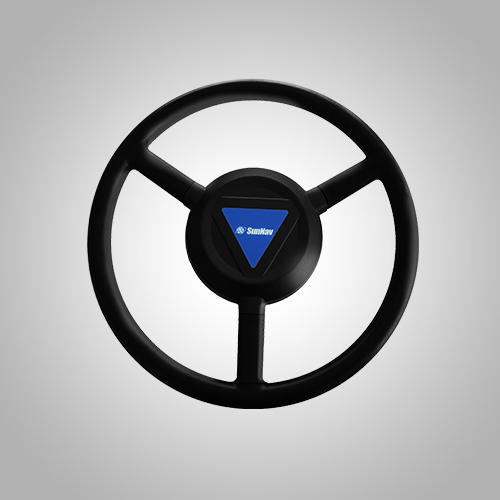

• EMS4 Motor Steering Wheel
The EMS4 is an electric motor steering wheel. It is designed for easy-to-install operation.
With high-torque, direct-drive electric motor, EMS1 can provide an accuracy up to 2.5cm
RTK.

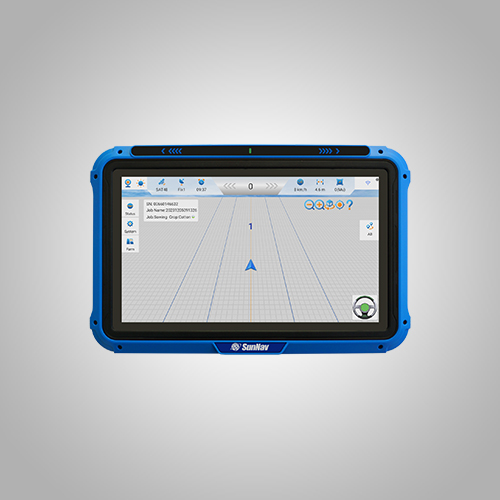

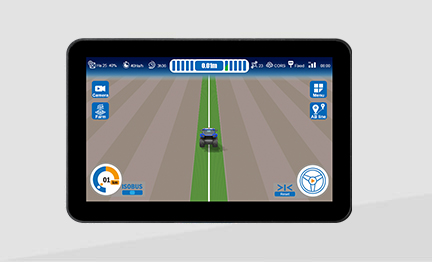

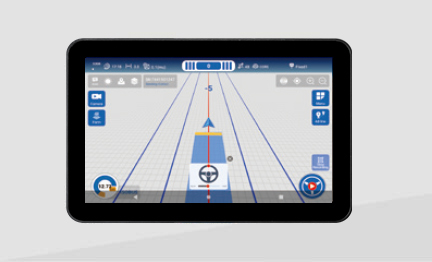

• T101 Tablet with Integrated GNSS Receiver & Radio
The SunNav T101 display is a portable,robust Android tablet. T100 is equipped with a built-in high-precision GNSS board which offers centimeter level accuracy.
T100 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.
 Operation system:  Android 6.0 /9.0
 CPU:  Quad-core Cortex-A7 ,1.5GHz
 Storage:  2GB+16GB
 LCD:  1024*600 800nits 10 inch
 TP:  10inch,10 fingerprint multi touch, capacitive, explosion-proof and anti-dazzle
 GNSS:  GPS+BDS/GPS+GLONASS
 WiFi+BT:  2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE
 WWLAN:  4G full networks,supporting Unicom, Telecom and Mobile
   Speaker:  40hm, 2W speaker
   Battery:  2600mAh, NTC protection

  • GNSS ANTENNA
  Double GNSS antenna can give high precision and heading.
Frequency Range: GPS L1/L2, GLONASS L1/L2, Beidou B1/B2/B3
  • Other Parts
  • 1.5m RS232 Data Cable
• 5m power & data Cable

• Radio Antenna
• 5m TNC-TNC Antenna Cables *2 Mounting Assembly
