PRODUCT TYPE
|
|
|

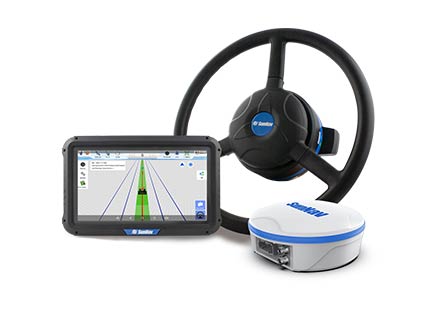

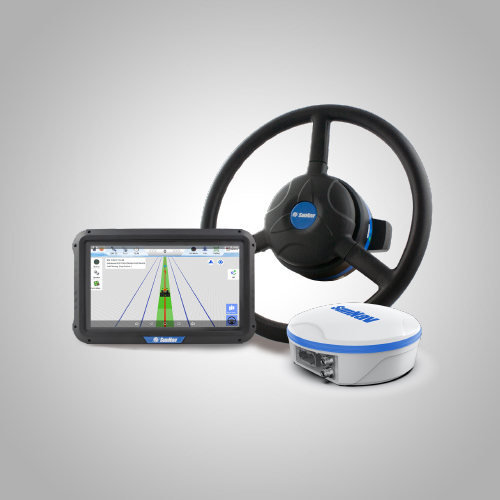

GNSS Auto Steering System AG400
|
|
|
|
STANDARD CONFIGURE
|

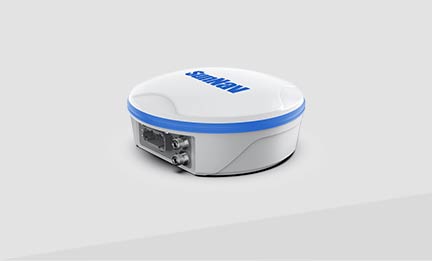

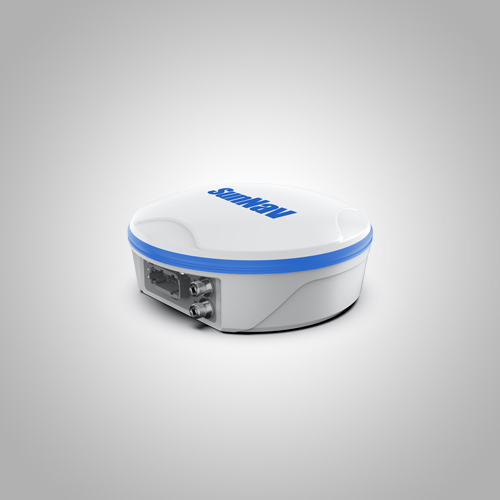

• GNSS Base Station
|
|
Channels:
|
432 Channels
|
|
GPS:
|
L1/L2
|
|
BEIDOU:
|
B1/B2
|
|
GLONASS:
|
L1/L2
|
|
Galileo:
|
E1/E5b
|
|
QZSS:
|
L1/L2
|
|
SBAS:
|
L1C/A Galileo（ scalability）
BDS global satellites（ scalability）
|
|
Radio Module:
|
Adjustable Full Band: 410-470 MHz
|
|
Size (L x W x H):
|
213mm x 119mm x 73mm
|
|
Weight:
|
1.2kg (include Internal UHF)
|
|
Working Temperature:
|
-40°C to +70°C
|
|
Storage Temperature:
|
-45°C to +80°C
|
|
Interface:
|
2 Ports (Power & Data & Configuration)
|
|
Waterproof and Dustproof:
|
IP67
|
|

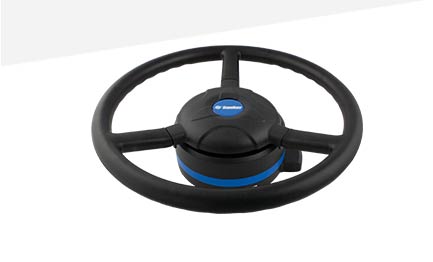

• EMS4 Motor Steering Wheel
|
|
The EMS4 is an electric motor steering wheel. It is designed for easy-to-install operation.
|
|
With high-torque, direct-drive electric motor, EMS1 can provide an accuracy up to 2.5cm
|
|
RTK.
|
|

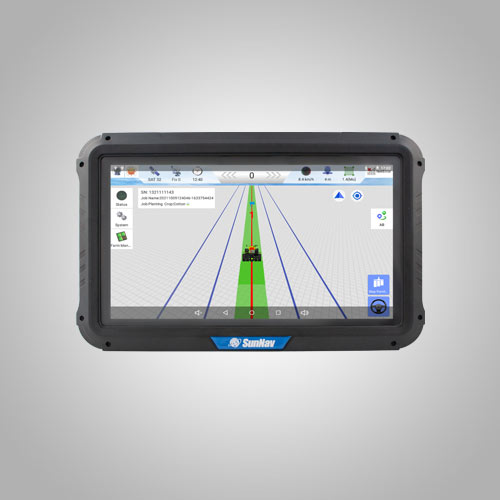

• T101 Tablet with Integrated GNSS Receiver & Radio
|
|
The SunNav T101 display is a portable,robust Android tablet. T100 is equipped with a built-in high-precision GNSS board which offers centimeter level accuracy.
|
|
T100 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.
|
|
Operation system:
|
Android 6.0
|
|
CPU:
|
Quad-core Cortex-A7 ,1.5GHz
|
|
Storage:
|
2GB+16GB
|
|
LCD:
|
1024*600 800nits 10 inch
|
|
TP:
|
10inch,10 fingerprint multi touch, capacitive, explosion-proof and anti-dazzle
|
|
GNSS:
|
GPS+BDS/GPS+GLONASS
|
|
WiFi+BT:
|
2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE
|
|
WWLAN:
|
4G full networks,supporting Unicom, Telecom and Mobile
|
|
|
Speaker:
|
40hm, 2W speaker
|
|
|
Battery:
|
2600mAh, NTC protection
|
|
|
|
|
|
• GNSS ANTENNA
|
|
|
Double GNSS antenna can give high precision and heading.
|
|
Frequency Range: GPS L1/L2, GLONASS L1/L2, Beidou B1/B2/B3
|
|
|
• Other Parts
|
|
|
• 1.5m RS232 Data Cable
|
|
• 5m power & data Cable
|
|
|
|
• Radio Antenna
|
|
• 5m TNC-TNC Antenna Cables *2 Mounting Assembly
|
|
|
|
|
|
