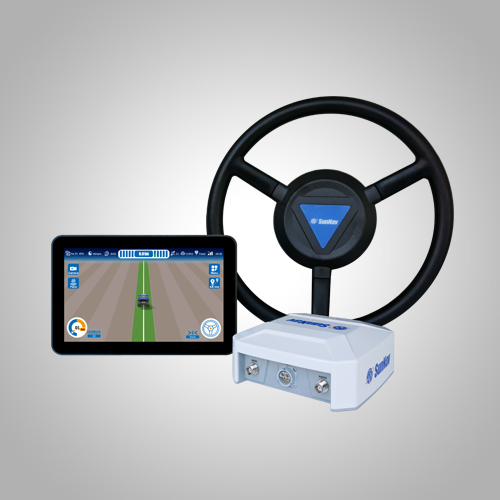

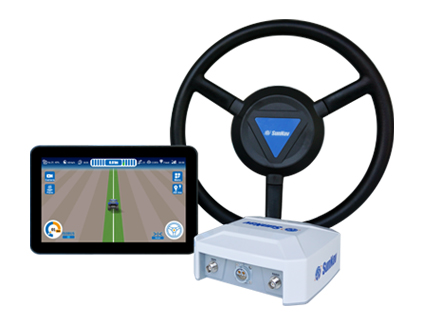

AG500Pro GNSS Auto-Steering System

SunNav Auto Steering system AG500Pro can give you high performance autosteering on non steer ready vehicles, including tractors sprayers swathers and combines. It can provide an accuracy up to 2.5cm and can be widely used in planing spraying harvest.




SunNav AG500 Pro auto steering system integrates high-precision GNSS technology to achieve accurate tractor control and navigation. With notable advantages in efficiency, energy conservation, precision, safety, and affordability, AG500 Pro significantly enhances agricultural machinery operations. It improves efficiency, reduces labor costs, and provides farmers with a more convenient, efficient, and intelligent agricultural machinery experience. It is versatile, applicable to tasks such as sowing, cultivating, trenching, ridging, pesticide spraying, transplanting, land consolidation, harvesting, and more.

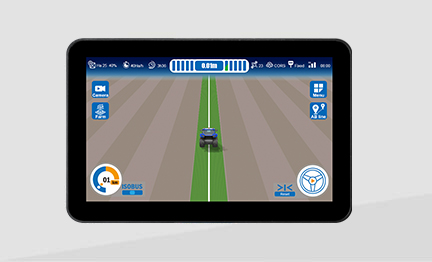

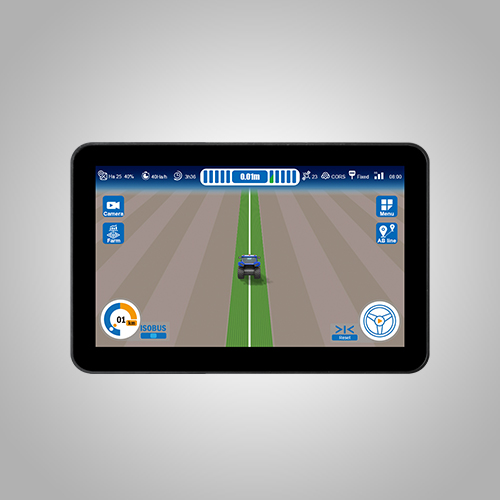

Control Tablet

System
Operating System: Android 10
LCD: 10.1’’ Capacitive Touch Screen
Communication
Wi-Fi: IEEE 802.11 a/b/g/n/ac/r, 2.4G&5G
4G network
Bluetooth: Ver 5.0 supports BLE
Support 2 CAN bus
Support 2 RS232 channels, 1 RS485 channel
Physical
Dustproof & Waterproof: IP-67
Dimension: 262mm*181mm*24mm  Weight: 1.7kg



High-Torque Motor Wheel

Motor Performance
Rated torque: 4Nm
Maximum Torque: 9Nm
Supply voltage: 6V~35V DC
Physical Dimension
Diameter:182mm (motor) Weight: 2.9 kg (motor only)
Thickness:61mm (motor) Material: Aluminum alloy(motor)
Diameter: 410mm (steering wheel)


Smart GNSS Receiver

Built-in GNSS board,IMU sensor,
Radio,Antenna

Physical Dimension:177.8×176×68.5mm
Weight: 1.05kg    Protection Level: IP67
Supply Voltage: DC 6-36V
Signal:
BDS:B1I、B2I、B3I、B2b
GPS:L1C/A、L2P(Y)、L2C、L5   GLONASS:G1、G2
Galileo:E1、E5a、E5b、E6        QZSS:L1、L2、L5
Data Format: NMEA 0183,Unicre
  • Features
  • Specifications
  • Application

■ Easy and fast installation

■ Very simple calibration


Specification


■ Installation in 30 mins, Calibration in 15 mins, Quick learn in 5 mins
■ Don't have to change hydyraulic system
■ Can be switched in different vehicles
■ 3m on the line
■ Operation accuracy
■ Cloud data storage
■ AB Line files can be shared in different vehicles
■ Double antenna receives signal to get high accuracy

Control Tablet
System
Operating System: Android 10
LCD: 10.1’’ Capacitive Touch Screen
Communication
Wi-Fi: IEEE 802.11 a/b/g/n/ac/r, 2.4G&5G
4G network
Bluetooth: Ver 5.0 supports BLE
Support 2 CAN bus
Support 2 RS232 channels, 1 RS485 channel
Physical
Dustproof & Waterproof: IP-67
Dimension: 262mm*181mm*24mm  Weight: 1.7kg


High-Torque Motor Wheel
Motor Performance
Rated torque: 4Nm
Maximum Torque: 9Nm
Supply voltage: 6V~35V DC
Physical Dimension
Diameter:182mm (motor) Weight: 2.9 kg (motor only)
Thickness:61mm (motor) Material: Aluminum alloy(motor)
Diameter: 410mm (steering wheel)


Smart GNSS Receiver
Built-in GNSS board,IMU sensor,
Radio,Antenna
Physical Dimension:177.8×176×68.5mm
Weight: 1.05kg    Protection Level: IP67
Supply Voltage: DC 6-36V
Signal:
BDS:B1I、B2I、B3I、B2b
GPS:L1C/A、L2P(Y)、L2C、L5   GLONASS:G1、G2
Galileo:E1、E5a、E5b、E6        QZSS:L1、L2、L5
Data Format: NMEA 0183,Unicre
