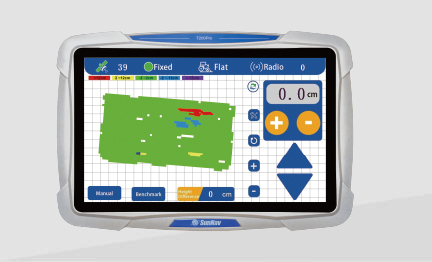

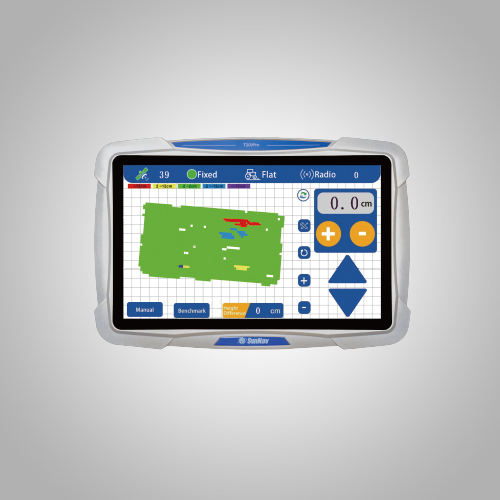

■ 10’ touch screen display, to show the realtime height difference clearly;

■ Easy operation, supports both horizontal and slope modes;

■ Could display real time height difference and equipment status information;

■ Integrate surveying function;

■ Could adjust the leveling accuracy;

■ Adjustable screen backlight;

■ Adjustable radio frequency, from 410MHZ to 470MHZ, free adjustment for frequency point,to avoid the signal interference;

■ Adjustable electromagnetic valve reaction sensitivity

■ Support system update

Signal

---

Channels:1408                        BDS B11/B21/B3
GPS L1C/A/L2P(Y)/L2C/L5    GLONASS G1/G2
Galileo E1/E5a/E5b                QZSS L1/L2/L5

Accuracy

---

Single Point Positioning(RMS): H 1.5m,V 2.5m
DGPS(RMS):H 0.4m,V 0.8m
RTK(RMS):H0.8cm+1ppm,V 1.5cm+1ppmm

Data Format

---

RTCM V3.X

Initialization

---

initialization<5s Initialization reliability:>99%

Adjustable parameter

---

Accuracy, Response Rate

Power

---

Input voltage:12V Load:36W Power: Normal:7.44W

Radio station

---

Radio:internal radio work range:3-5KM
ProtocOI:TRIMTALK TRANSEOT
Frequency:410~470MHZ Frequency channel:8

Environment

---

Storage temperature:-20~+60C
Operating temperature:-20~+60C

Monitor

---

Size:297X203X43 Weight: 1.6 kg

Interface

---

Power: solenoid valve: handle:GNSS:UHF
